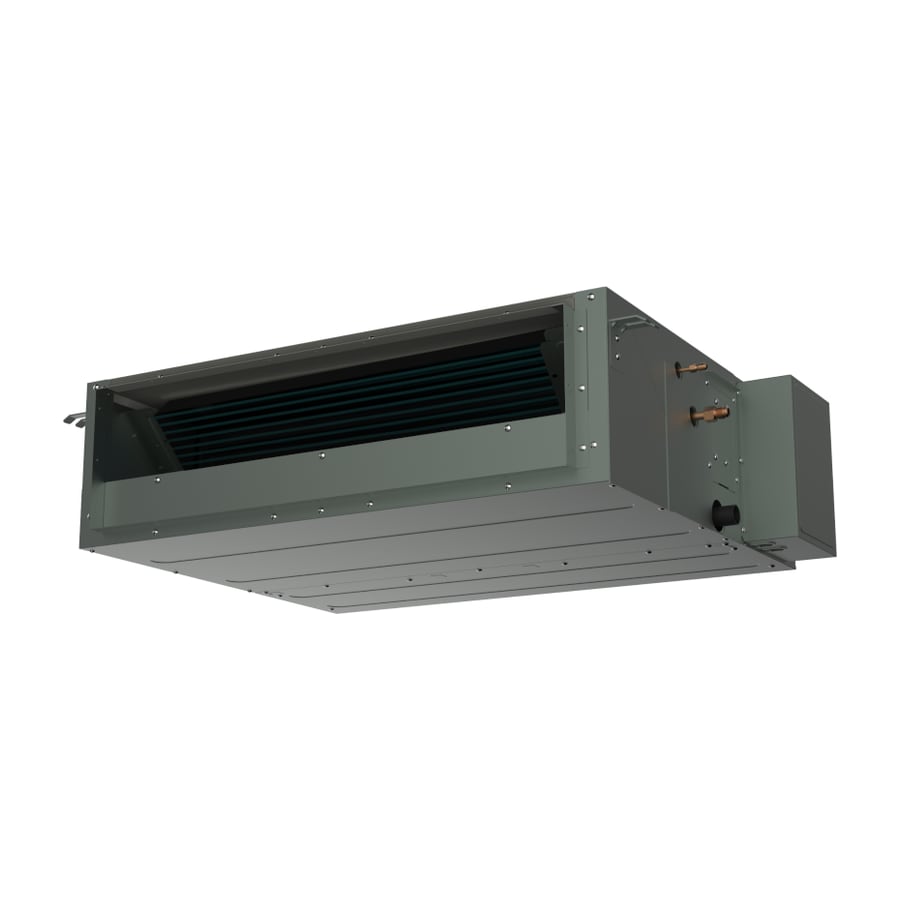

Split Systems · airCore 600 Inverter
Ducted Split
Concealed inverter ducted splits, 18K to 60K, with a wide external static pressure range.
airCore 600 is Hitachi’s inverter ducted range for the high ambient series. Complete DC inverter technology, a wide ESP range set in 1 Pa steps, and air return from the bottom or the rear so the unit fits the ceiling void you actually have.
At a glance
Models
18K / 24K / 30K / 36K / 48K / 60K
Compressor
High efficiency twin rotary
Fan motors
DC, on both indoor and outdoor units
Heat exchanger
Hydrophilic aluminium fin
Efficiency
EER up to 3.62
Air return
Bottom or rear, with built-in drain pan
Specification
Controllers
Figures as published by Hitachi. Send us the room and we will confirm the model against the actual load.
Type
Model
Setting range
Wired controller
HCWA2NEH2
20–28°C
Wired controller
HCWA1NEH2
16–30°C
Wireless remote
HCRB32NREW
20–28°C
Wireless remote
HCRB31NREW
16–30°C
The wired Control Point gives an ultra-clear touch display; the wireless remote runs for extended periods on a single battery.
Features
What the unit actually does.
- Complete DC inverter technology
- Wide ESP range, adjustable in 1 Pa steps to match the duct design
- Flexible air return from bottom or rear
- Built-in drain pan — less dust adhesion and no external pan to leak
- Hydrophilic fin coating prevents droplets bridging the fins and blocking airflow
- Refrigerant leak detection, active from 30% to 80% charge
- High and low pressure switches (30K to 60K models)
- Discharge temperature sensor and temperature protection system
- Fire-resistant electrical box on the indoor unit
Applications
Where this one fits.
Villas with concealed ceiling voids
Offices and retail fit-outs
Hotels and serviced apartments
Clinics and salons
Related products
Other Hitachi systems.
Hi-Wall Split
Wall mounted splits from 18,000 to 32,000 Btu/h, built to keep cooling at Gulf ambients.

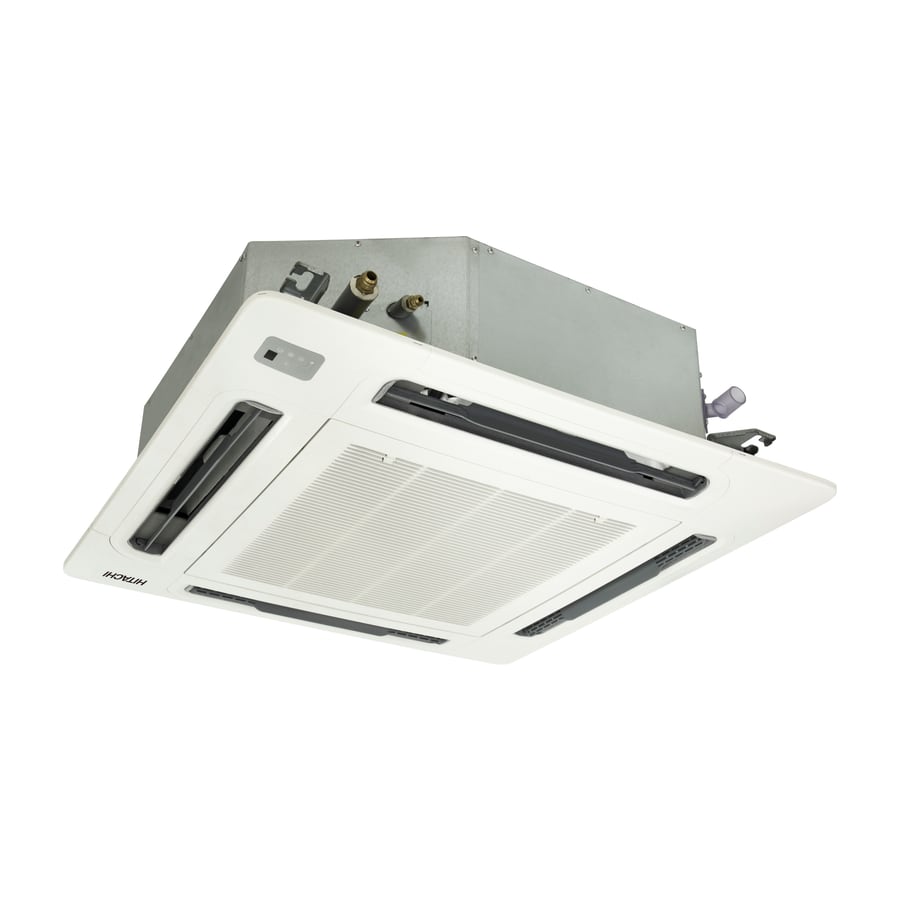

Cassette Split
Four-way ceiling cassettes, 2.0 to 7.0 HP, with individually adjustable louvres.

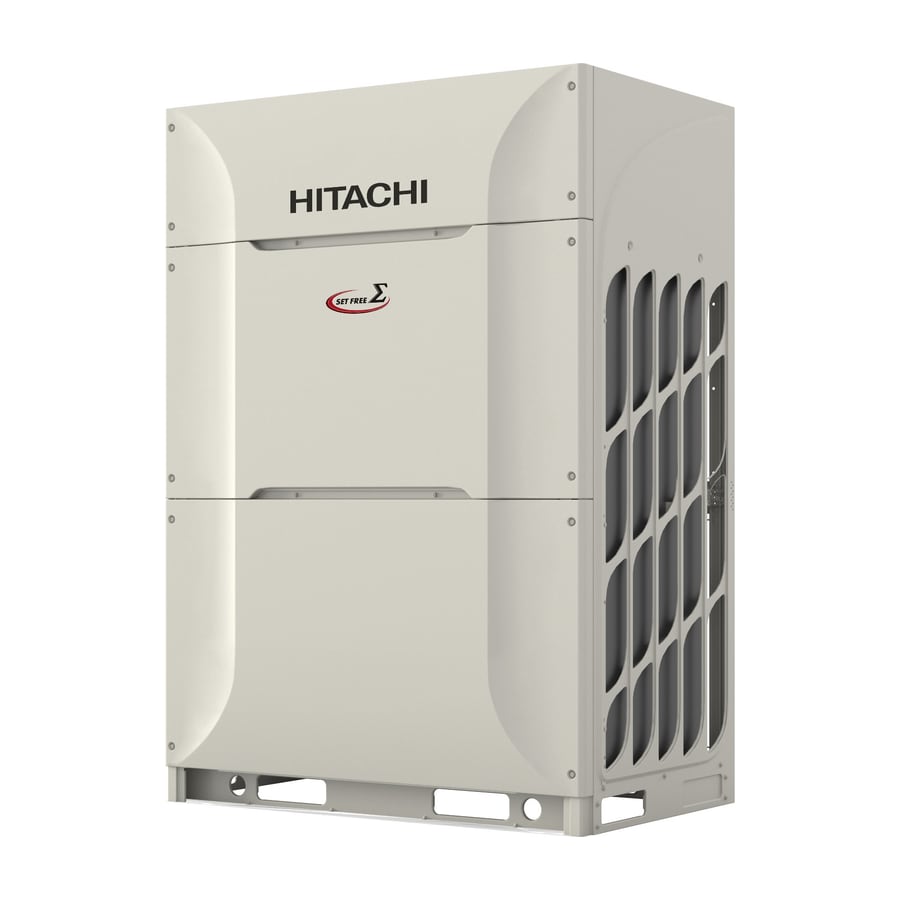

VRF Systems
Hitachi’s 8th generation commercial VRF, 8 to 72 HP, for high ambient regions.
Interested in the Ducted Split?
Tell us the space and the load. We will size it, quote it, install it and service it.
