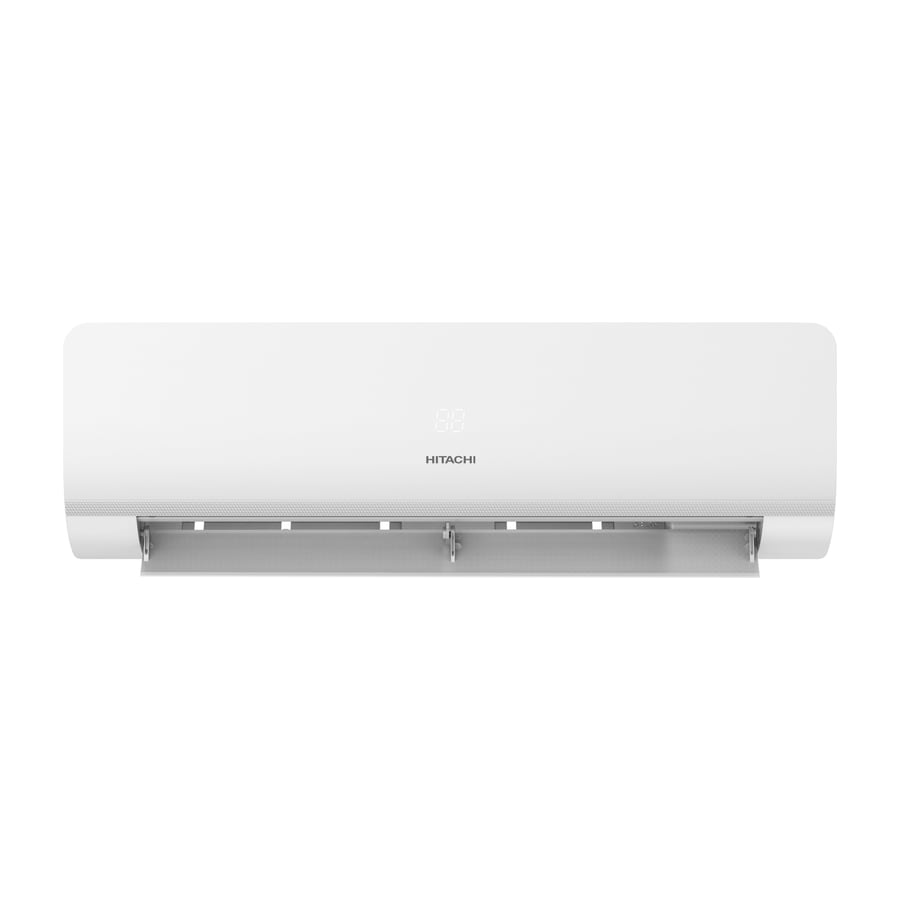

Split Systems · airHome 200X
Hi-Wall Split
Wall mounted splits from 18,000 to 32,000 Btu/h, built to keep cooling at Gulf ambients.
The airHome 200X range covers villas, apartments, small offices and retail units. Four models, R410A, and a wireless remote that a tenant can actually understand.
At a glance
Range
18,000 / 23,500 / 27,000 / 32,000 Btu/h
Indoor models
RAK-AJ18 / AJ24 / AJ30 / AJ36 PCAMG3
Outdoor models
RAC-AJ18 / AJ24 / AJ30 / AJ36 PCAMG3
Power supply
1 Ph / 220–240 V / 50 Hz
Refrigerant
R410A
Control
Wireless remote controller
Specification
Cooling performance
Figures as published by Hitachi. Send us the room and we will confirm the model against the actual load.
Model
Capacity @ T1
Capacity @ T3
EER @ T1
AJ18PCAMG3
18,000 Btu/h
15,500 Btu/h
12.0
AJ24PCAMG3
23,500 Btu/h
20,200 Btu/h
12.3
AJ30PCAMG3
27,000 Btu/h
23,500 Btu/h
12.3
AJ36PCAMG3
32,000 Btu/h
29,500 Btu/h
12.3
T1 and T3 are the standard and high-ambient rating conditions. EER in Btu/h per watt.
Features
What the unit actually does.
- Energy efficient DC inverter operation
- I Feel — control to the temperature at the remote, not at the unit
- Quiet control for bedrooms and small offices
- Turbo mode: maximum power and air volume to pull the room down quickly
- 4D auto-swing for even distribution
- Eight sleep modes, tuned for adult, youth, elderly and children
- Eco-friendly R410A refrigerant
Applications
Where this one fits.
Villas and apartments
Small offices
Retail units
Single-room replacements
Related products
Other Hitachi systems.

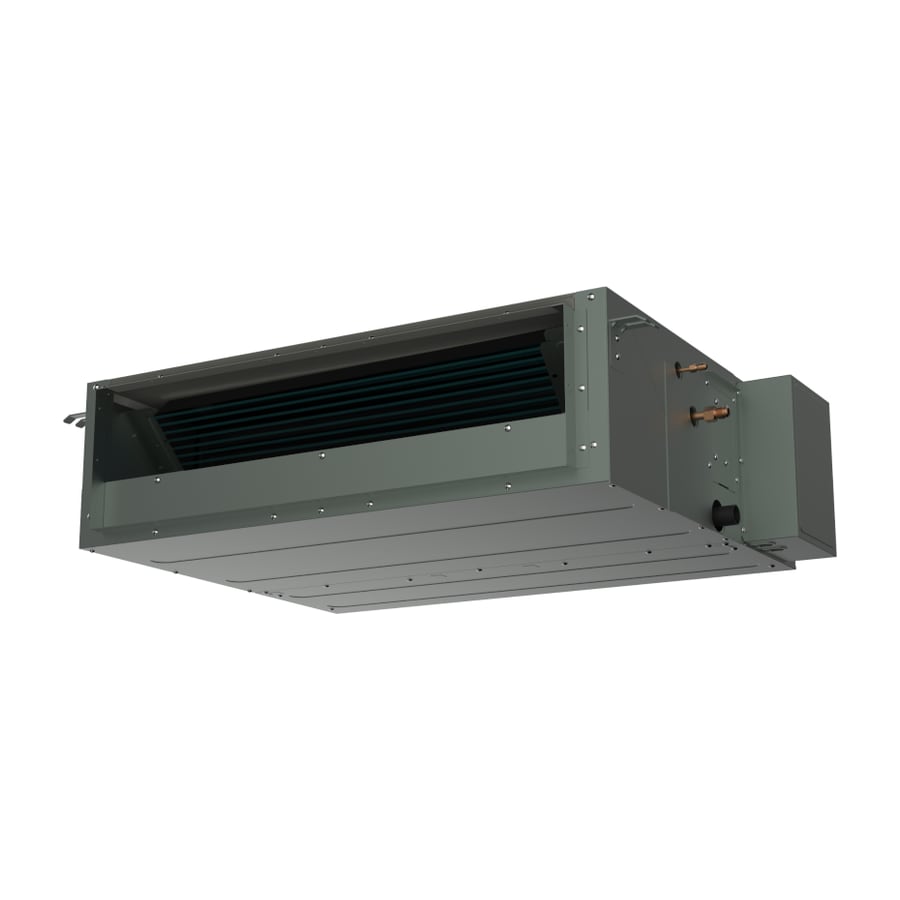

Ducted Split
Concealed inverter ducted splits, 18K to 60K, with a wide external static pressure range.

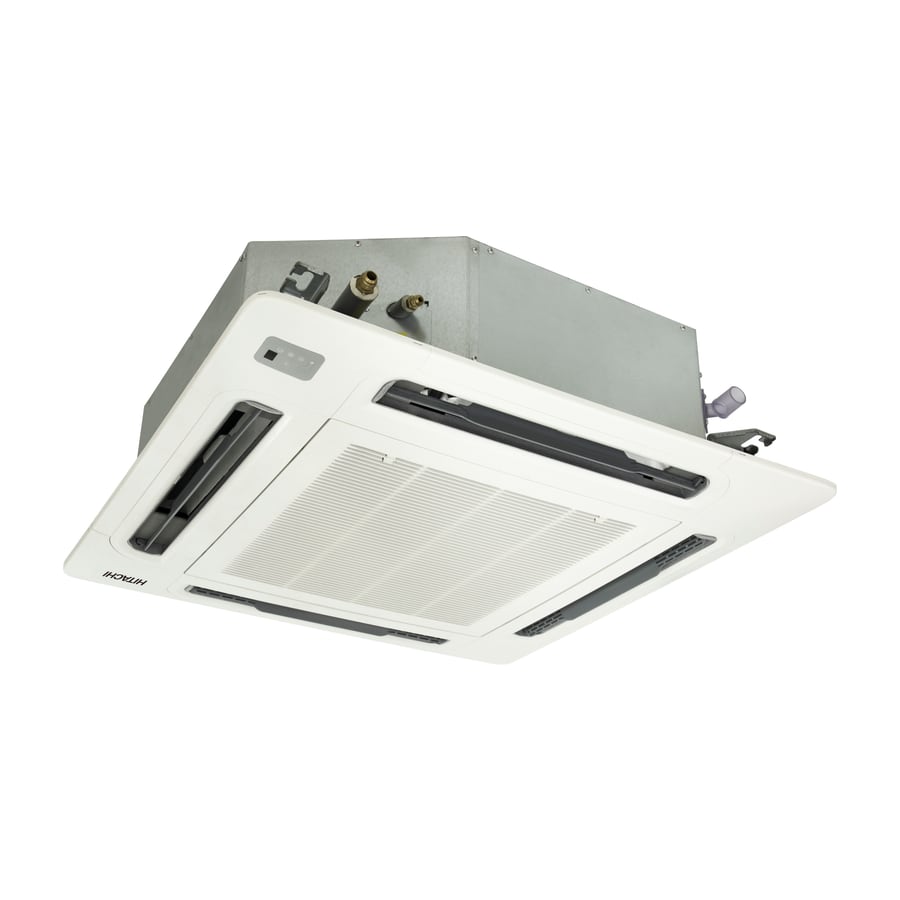

Cassette Split
Four-way ceiling cassettes, 2.0 to 7.0 HP, with individually adjustable louvres.

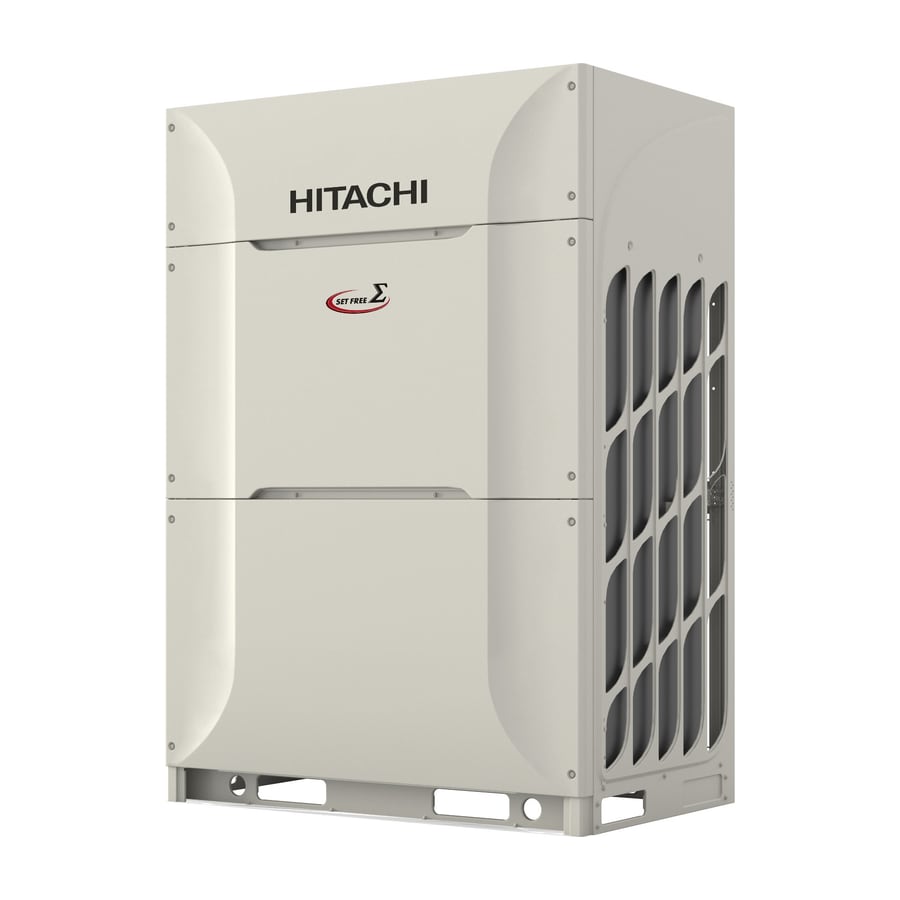

VRF Systems
Hitachi’s 8th generation commercial VRF, 8 to 72 HP, for high ambient regions.
Interested in the Hi-Wall Split?
Tell us the space and the load. We will size it, quote it, install it and service it.
