Packaged · RUA series

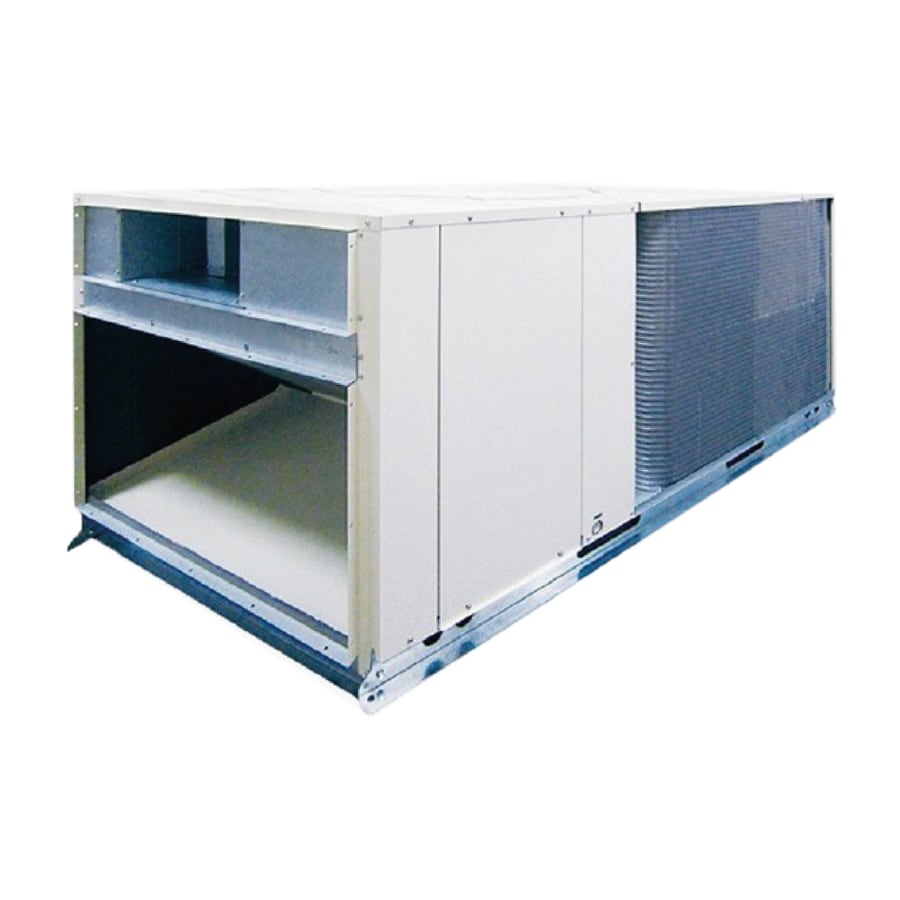

Rooftop Package Units

Packaged rooftop plant on a galvanised steel base, built for high ambient operation.

Where there is roof to use and no room for an indoor plant space, the RUA packaged unit puts the whole system in one weatherproof casing — scroll compressor, both coils, both fans, and a control board that tells a service engineer what went wrong.

At a glance

Compressor

Hermetic scroll

Condenser coil

Multi-pass cross-finned tube

Condenser fan

Direct driven propeller

Evaporator coil

Multi-pass cross-finned tube

Evaporator fan

Multi-blade centrifugal, double suction

Casing

Synthetic resin paint baked on galvanised steel, beige (2.5Y 8/2)

Specification

Protection and control

Figures as published by Hitachi. Send us the room and we will confirm the model against the actual load.

Feature

Detail

Control board

Newly developed PCB, starting sequence controlled automatically

Fault reporting

Alarm code displayed on the unit; failure resumes for service

Electrical protection

3-phase over-current transformer

Refrigerant protection

High and low pressure switch

Compressor protection

Internal thermostat

Base

Galvanised steel, improving unit structural strength

Features

What the unit actually does.

Applications

Where this one fits.

Warehouses and light industrial

Large retail and supermarkets

Workshops and production floors

Sports halls and community buildings

Model-by-model capacities to be confirmed — the RUA flier supplied is an image-only PDF and its capacity table could not be read reliably.

Other Hitachi systems.

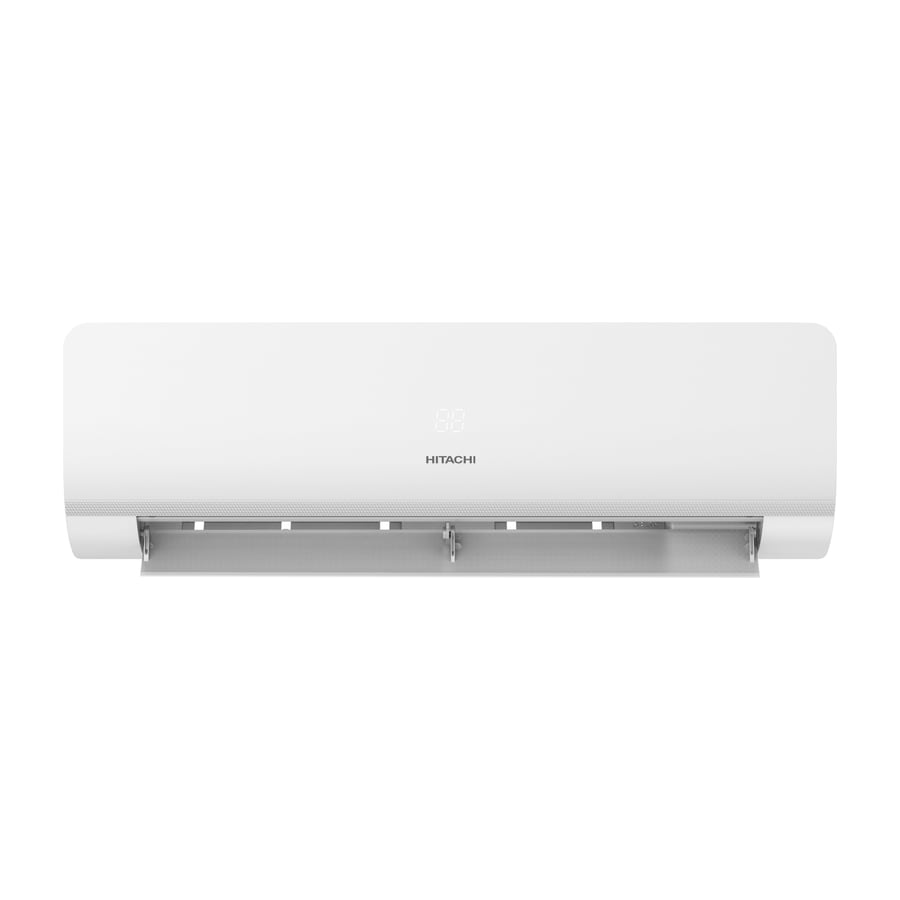

Hi-Wall Split

Wall mounted splits from 18,000 to 32,000 Btu/h, built to keep cooling at Gulf ambients.

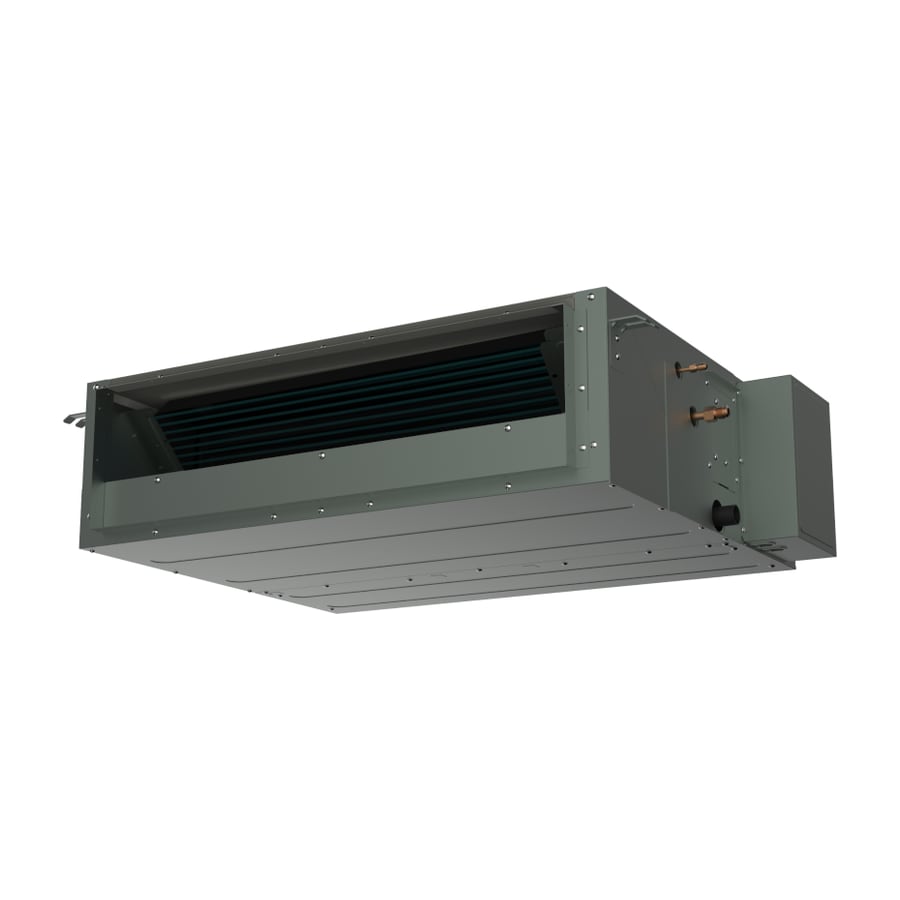

Ducted Split

Concealed inverter ducted splits, 18K to 60K, with a wide external static pressure range.

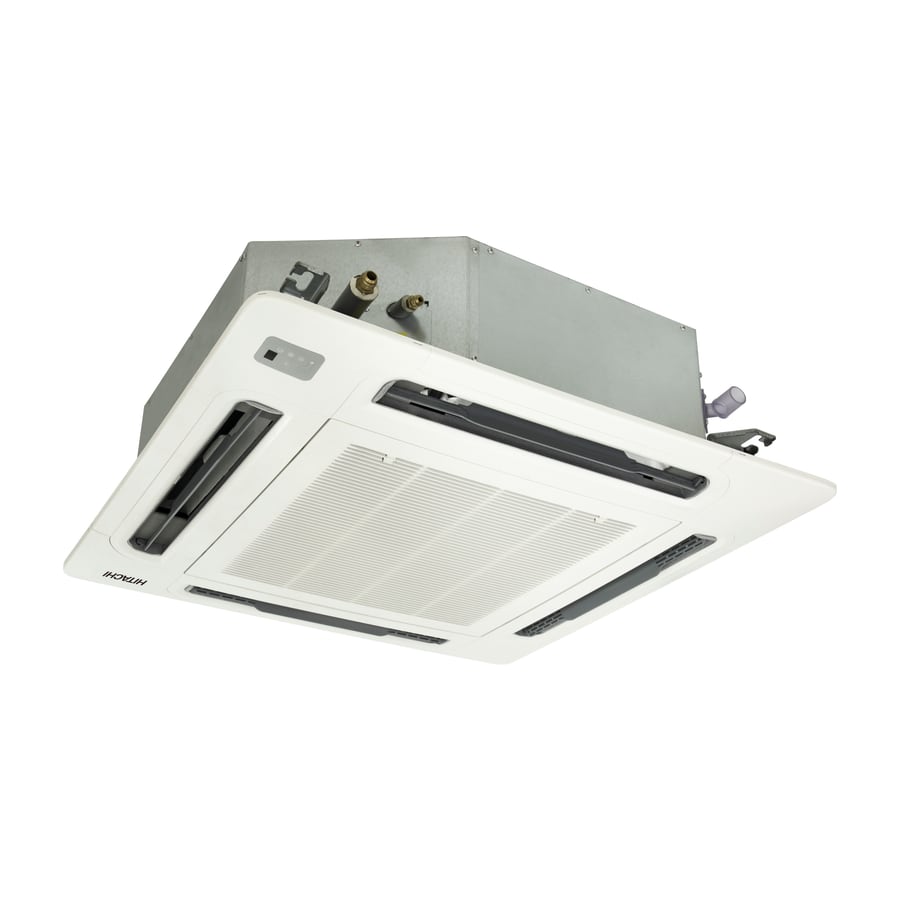

Cassette Split
